Shorter service time
The tooling is always in the same fixed location, within the operator's reach.
Available

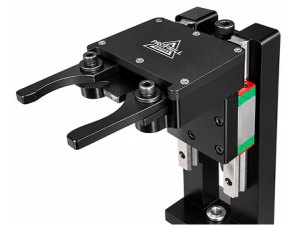

Staging station for specialized tools
A secure storage location for tool holders, mounted within easy reach of the CNC machine operator. Instead of placing tooling on the machine table or a workbench, the operator places it in a designated spot, which reduces tool change time and protects the holders from damage.
- Installation
- At the CNC workstation
- Mounting
- Clamping levers
- Execution
- Steel and aluminium
We operate on a B2B sales model through distributors. We will forward your inquiry to the partner serving your region.
Available from distributors
- Abplanalp
- Distributor logo
- Distributor logo
- See the list
Key information
What changes in the role
Handle protection
Secure mounting instead of resting the machine on a countertop or table, without applying pressure to work surfaces.
Workstation organization
Fixed tool layout at the machine and a repeatable work method when changing tooling.
Production-proven
The solution was tested on our machine tools before making it into the production version.
Product description
The structure built next to the machine

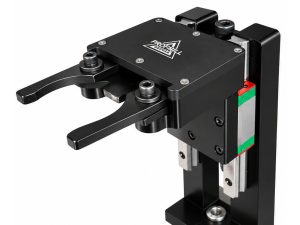

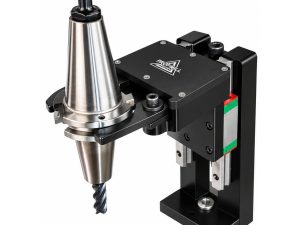

We manufacture the station body using components machined on our CNC equipment, while the moving part operates on a linear guide, allowing the tool holder to be deposited and retrieved in a single motion. The tooling is secured by clamping levers that grip the holder at a designated structural point, avoiding any pressure on the working surfaces of the taper. We selected contact elements that do not leave marks on the holder. The product was developed in response to a problem we encountered in our own production operations: placing tooling in random locations wasted operator time and posed a risk of damage to the holders. We tested the solution on our own machinery before refining it into a production-ready version.
- Linear guide with carriage
- Clamping levers without axial load on the cone
- CNC-machined housing
- Custom-tailored versions
The product in practice
See how it works
Short videos showing assembly, tooling setup, and chuck changes in a real-world working environment.
Technical specifications
Specification
| Body material | Structural steel, aluminum components |
|---|---|
| Construction method | CNC machining, mechanical assembly |
| Surface finish | Anodizing, powder coating |
| Leading | Linear guide with carriage |
| Tool mounting | Clamping levers |
| Dimensions | to be completed |
| Mass | to be completed |
| Compatible mounts | to be completed |
Items marked as requiring completion are awaiting technical data from the manufacturer.
Made-to-order version
Do you need the product in a different version?
Contact us, and we will prepare a solution tailored to your technical requirements—whether it involves a different type of mount, a different mounting method, or different workstation dimensions.
Describe your requirements.
Downloadable materials
Product documentation
Instructions, technical data sheets, and drawings for users of the deposit station.
